Ingenico AXIUM SX5000 Unattended Contactless Terminal | Android Self-Service

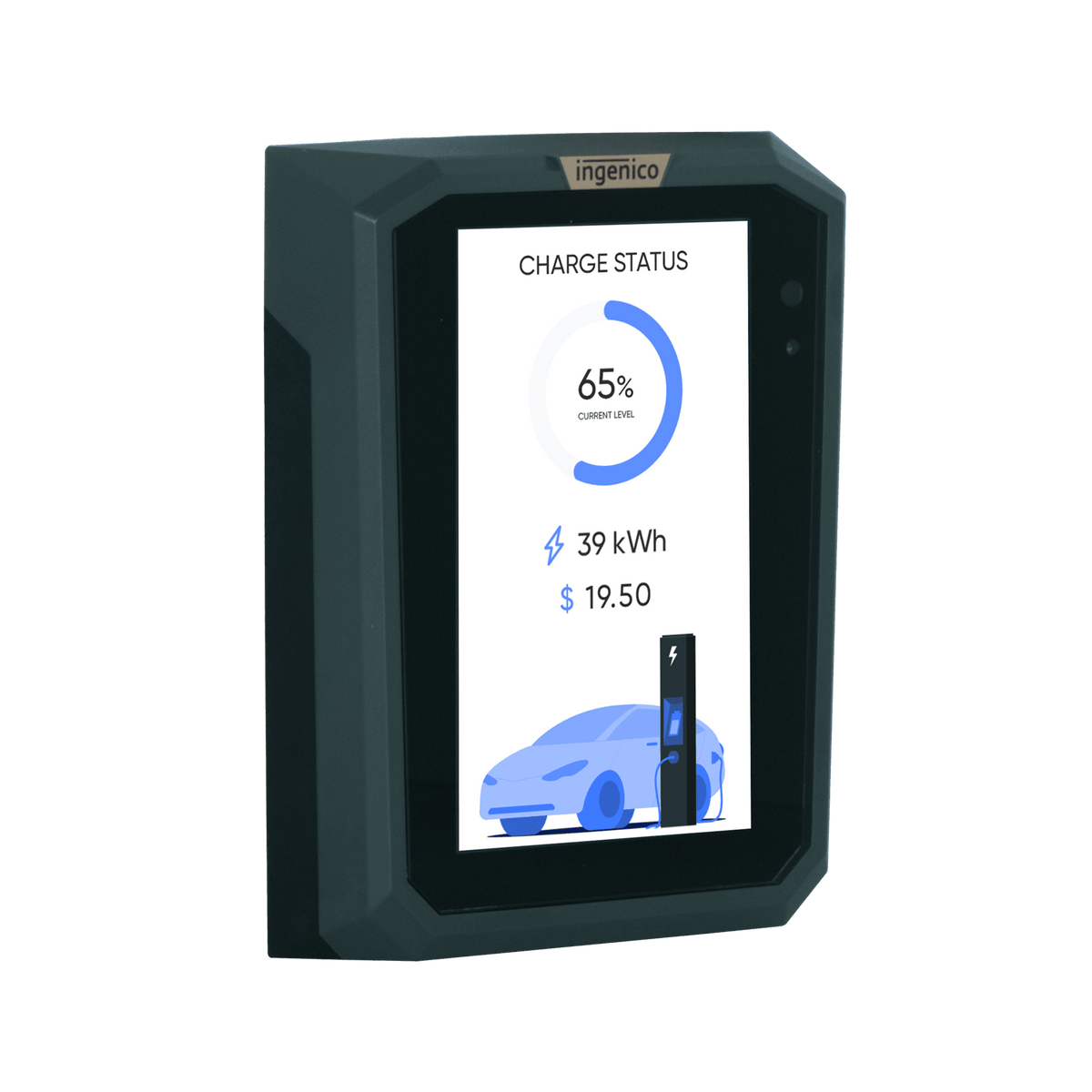

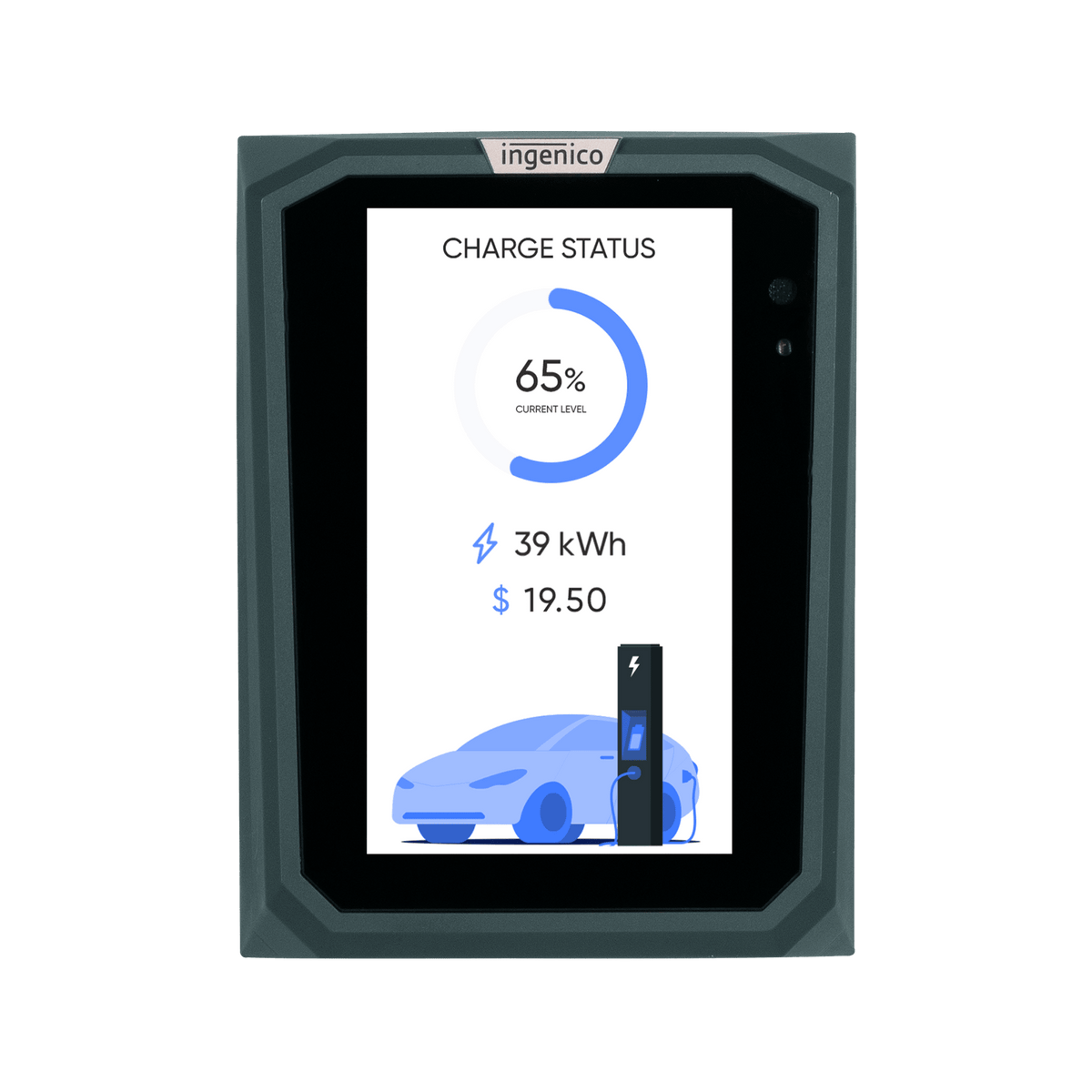

The Ingenico AXIUM SX5000 is an Android 14 self-service payment terminal built into the front of a kiosk, EV charger, vending machine, parking pay station or self-checkout. It takes contactless cards, mobile wallets and QR code payments, with PIN entry on a certified 5-inch touchscreen, in a single compact unit rated for outdoor use.

Where the SX5000 fits

The AXIUM SX series is Ingenico's Android generation of unattended terminals. The SX5000 is the contactless-only model: no chip or magstripe slot, which means fewer moving parts and a slim front profile. If your site must accept chip and swipe cards, choose the AXIUM SX7000, which adds a chip reader with shutter and a magstripe reader in the same footprint. For current-generation Ingenico self-service hardware in stock today, see the Self 2000 and Self 7000 / Self 8000.

Key features

• Touchscreen with PIN on Glass: 5" IPS color display (720 x 1280), capacitive multi-touch, 5 mm glass, certified for on-screen PIN entry.
• Contactless and QR: EMV Contactless L1 3.x with tap-on-screen and virtual contactless LEDs, plus a downward camera for QR code payments and code scanning.
• Android 14: quad-core 2 GHz Cortex A53 with a separate security processor, 32 GB flash and 4 GB RAM, ready for your own payment and kiosk apps.
• Connects to your machine: Ethernet, dual-band Wi-Fi, Bluetooth 5.0, optional 4G, USB-A host, USB-C, RS232, MDB 4.3, HDMI for an external screen and isolated I/O.
• Built for outdoors: IP65, IK09, CE Outdoor certified, operating from -20 to +65 C (-4 to 149 F), with presence and light sensors.
• Front mounting: installs from outside the kiosk into a 107.5 x 84 mm cutout, EVA EPS v2 Standard Door Module compliant, 532 g.
• Long PCI runway: PCI PTS 7.x approval 4-20387, approval expires 30 Apr 2035.

Where the SX5000 is used

EV charging stations, vending and micro markets, parking and transit, self-checkout and ordering kiosks, laundromats and car washes.

Frequently asked questions

Does the AXIUM SX5000 accept chip or swipe cards?

No. The SX5000 is contactless only (EMV Contactless L1 3.x, ISO/IEC 14443) plus QR code payments through its camera. Ingenico lists chip and magstripe reading only for the SX7000.

Can customers enter a PIN on the SX5000?

Yes. PIN is entered on the 5 in touchscreen. Ingenico states the device is PIN on Glass certified, and the PCI SSC list shows touch-screen PIN entry for its approvals.

Can the SX5000 be installed outdoors?

Yes. Ingenico rates it IP65 and IK09, CE Outdoor certified, with an operating range of -20 to +65 C (-4 to 149 F).

What size cutout does the SX5000 need?

The current US/Canada datasheet lists a 107.5 x 84 mm installation cutout, 25.4 mm kiosk depth and 31.5 mm front protrusion. It mounts from outside the kiosk and fits the EVA EPS v2 Standard Door Module. Earlier datasheets listed a 104.5 x 81 mm cutout, so confirm against the current drawing before cutting panels.

How does the SX5000 connect to a kiosk or vending machine?

It has Ethernet, dual-band Wi-Fi, Bluetooth 5.0 and optional 4G, plus USB-A host, USB-C device, RS232 (RJ11), MDB 4.3 slave, HDMI for an external screen, and isolated I/O (2 inputs, 2 outputs). An optional MDB box is listed as an accessory.

What is the PCI approval status of the SX5000?

The PCI SSC approved devices list shows two SX5000 approvals: 4-20380 under PTS 6.x, approval expires 30 Apr 2032, and 4-20387 under PTS 7.x, approval expires 30 Apr 2035.

Is the AXIUM SX5000 available now?

Not yet in stock at Allstar Terminals. Request a quote and we will confirm pricing, lead time and processor support, and contact you when units are available.

Availability and quotes

The AXIUM SX series is not in stock yet. Request a quote now to get pricing, lead time and processor compatibility for your rollout, and we will contact you as soon as units are available. Every unit can be injected with your processor's keys and programmed in-house before it ships, and injected or programmed orders ship 2 to 3 business days after the order is placed. Wholesale tiered pricing and blind drop-shipping are available for ISOs, kiosk builders, resellers and operators.

Request a wholesale quote or call 888-403-7066.
