Ingenico AXIUM SX7000 Unattended Payment Terminal | Chip, Tap & Swipe, Android

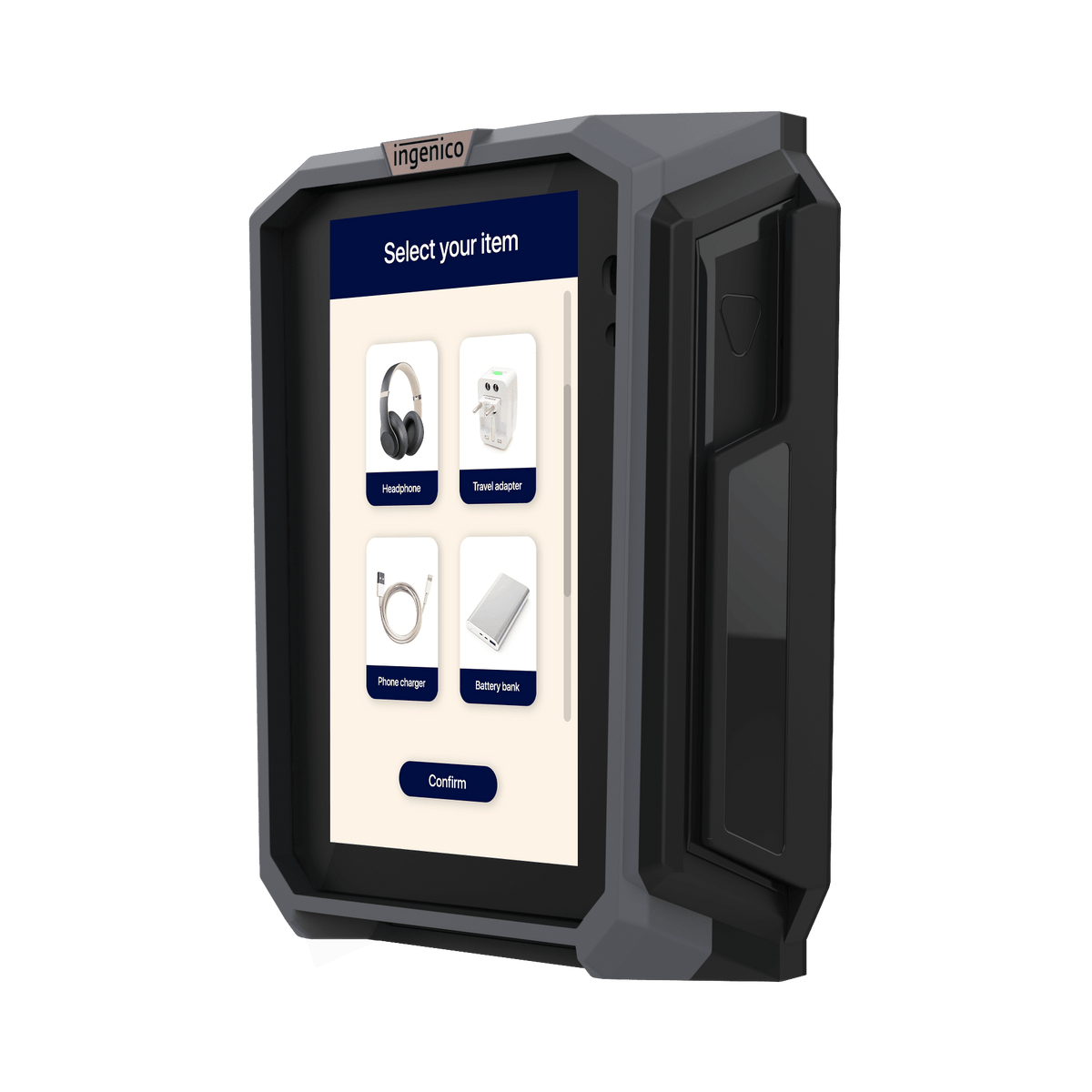

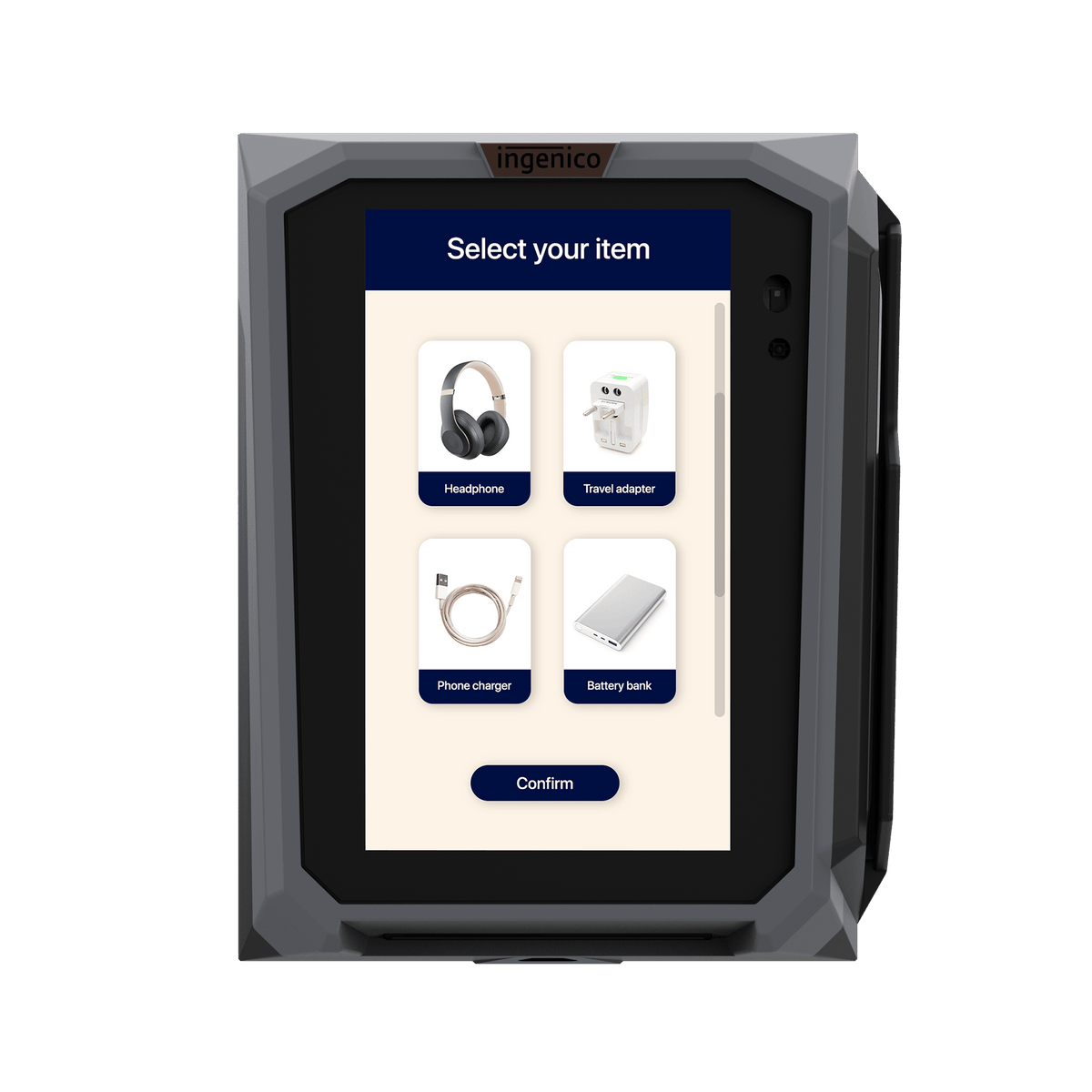

The Ingenico AXIUM SX7000 is an all-in-one Android 14 self-service payment terminal that accepts chip, contactless, magstripe and QR code payments from a single front-mounted unit. Customers enter their PIN on a certified 5-inch touchscreen, and the IP65 / IK09 housing is rated for outdoor kiosks, fuel, parking, transit and vending.

Where the SX7000 fits

The AXIUM SX series is Ingenico's Android generation of unattended terminals. The SX7000 is the full-acceptance model: it adds an EMV chip reader with shutter and an ISO 1/2/3 magstripe reader to everything in the contactless-only AXIUM SX5000. This listing is the magstripe (MSR) build, the configuration Ingenico publishes for the US and Canada. Need a physical PIN keypad or hardware in stock today? See the Self 4000, Self 5000 and Self 7000 / Self 8000.

Key features

• Every payment type: EMV L1 chip reader with shutter, EMV Contactless L1 3.x tap-on-screen, magstripe tracks 1/2/3, and QR codes via the downward camera.
• Touchscreen with PIN on Glass: 5" IPS color display (720 x 1280), capacitive multi-touch, certified for on-screen PIN entry, with a haptic sensor on the MSR build.
• Android 14: quad-core 2 GHz Cortex A53 with a separate security processor, 32 GB flash and 4 GB RAM.
• Connects to your machine: Ethernet, dual-band Wi-Fi, Bluetooth 5.0, optional 4G, USB-A host, USB-C, RS232, MDB 4.3, HDMI and isolated I/O.
• Built for outdoors: IP65, IK09, CE Outdoor certified, operating from -20 to +65 C (-4 to 149 F).

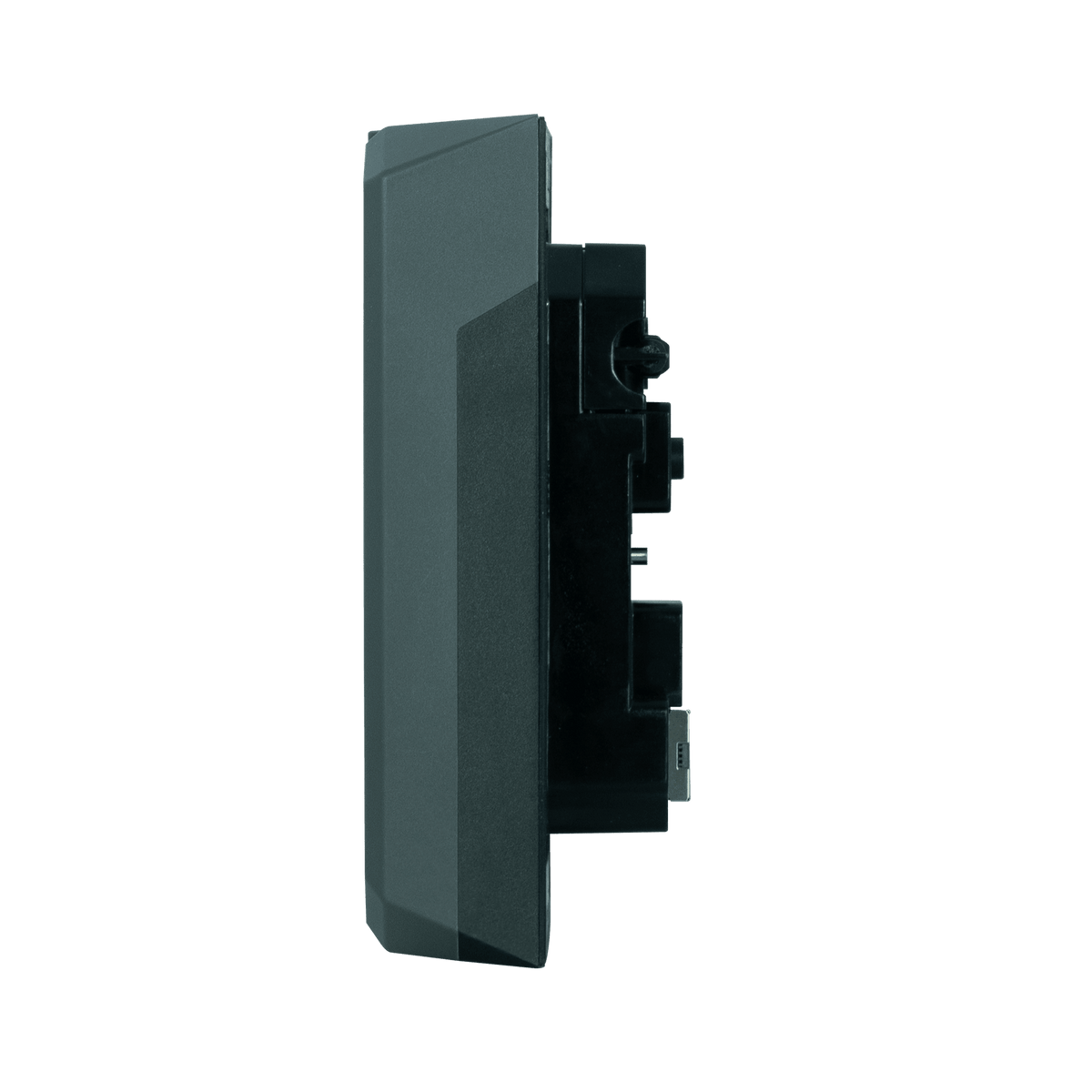

• Front mounting: installs from outside the kiosk into a 107.5 x 84 mm cutout, EVA EPS v2 Standard Door Module compliant; MSR build 117 x 145.9 x 56.9 mm, 581 g.
• PCI approved: PCI PTS 6.x approval 4-20379, approval expires 30 Apr 2032.

Where the SX7000 is used

Ticketing and transit machines, fuel and EV charging, parking pay stations, unattended retail and self-checkout, vending and kiosks that must accept chip and PIN.

Frequently asked questions

What payment types does the AXIUM SX7000 accept?

Chip (EMV L1, ISO 7816, reader with shutter), contactless (EMV Contactless L1 3.x), magstripe (ISO tracks 1/2/3 on the MSR build) and QR code payments read by the downward camera. The Ingenico US page states chip and PIN and a magstripe reader for the SX7000.

What is the difference between the SX7000 and the SX5000?

Both share the processor, Android 14, 5 in display, camera, sensors, ports and IP65 / IK09 rating. The SX7000 adds a chip reader and a magstripe reader; the SX5000 is contactless and QR only. The SX7000 MSR build is wider (117 mm vs 110 mm) and heavier (581 g vs 532 g).

Does the SX7000 have a physical PIN keypad?

No. PIN is entered on the touchscreen. Ingenico states it is PIN on Glass certified, and its PCI approval lists touch-screen PIN entry.

What size cutout does the SX7000 need?

Current datasheets list a 107.5 x 84 mm cutout with EVA EPS v2 Standard Door Module compliance and mounting from outside the kiosk. The MSR build has 37.5 mm front protrusion and 19.4 mm kiosk depth. The Nov 2024 datasheets listed 104.5 x 81 mm and 26.15 mm depth, so confirm against the current drawing.

Can the SX7000 be used outdoors?

Current Ingenico datasheets and the US product page rate it IP65 and IK09, CE Outdoor certified, operating from -20 to +65 C (-4 to 149 F). Earlier 2024 datasheets showed IP54 or IP55.

What is the PCI approval status of the SX7000?

The PCI SSC approved devices list shows approval 4-20379 under PTS 6.x, approval expires 30 Apr 2032, covering chip, magstripe and contactless functions.

Is the AXIUM SX7000 available now?

Not yet in stock at Allstar Terminals. Request a quote and we will confirm pricing, lead time and processor support, and contact you when units are available.

Availability and quotes

The AXIUM SX series is not in stock yet. Request a quote now to get pricing, lead time and processor compatibility for your rollout, and we will contact you as soon as units are available. Every unit can be injected with your processor's keys and programmed in-house before it ships, and injected or programmed orders ship 2 to 3 business days after the order is placed. Wholesale tiered pricing and blind drop-shipping are available for ISOs, kiosk builders, resellers and operators.

Request a wholesale quote or call 888-403-7066.
