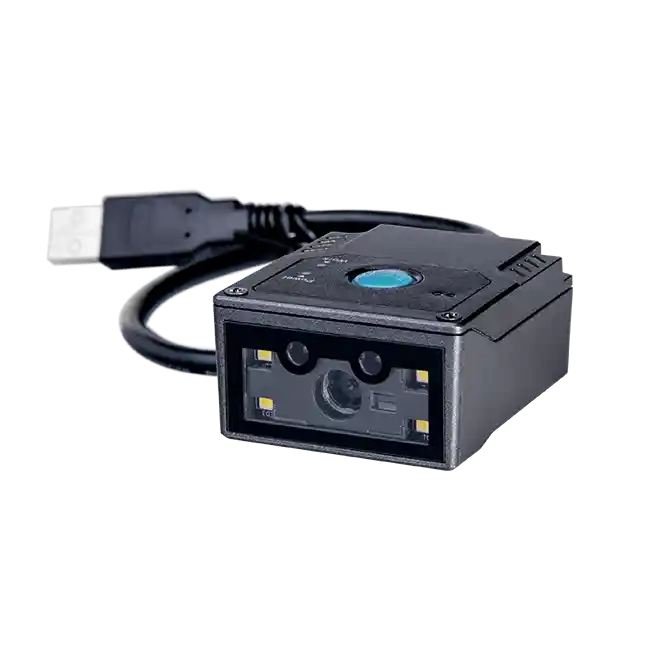

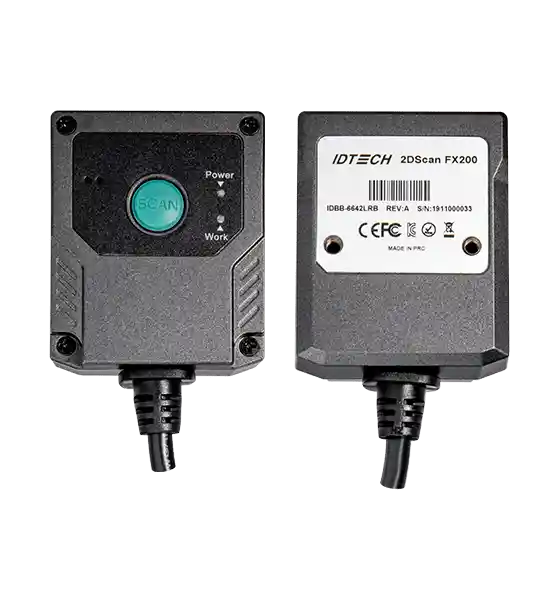

ID TECH 2D Scan FX200 Fixed-Mount QR & Barcode Scanner

The ID TECH 2D Scan FX200 is a compact fixed-mount 2D barcode reader for kiosks, parking gates, vending machines and retail counters. At 41.5 x 49.5 x 24.3 mm and under 2 oz, it tucks inside an enclosure and reads QR codes, mobile tickets and coupons from phone screens or paper.

A 1280 x 800 CMOS imager at 60 frames per second, with sense, continuous, level and pulse trigger modes, lets integrators match the scanner to the machine. It is plug-and-play over USB or RS-232 and sealed to IP54.

Key Features

• Reads 2D and 1D codes: QR, Micro QR, PDF417, Data Matrix, Aztec, MaxiCode, UPC/EAN, Code 128/39/93, ITF and more
• 1280 x 800 CMOS imager at 60 fps
• Four trigger modes: sense, continuous, level and pulse, with IR and light sensors
• Tiny fixed-mount body for OEM and kiosk integration
• USB or RS-232 plug-and-play builds
• IP54 and 1.5 m drop rated

Technical Specifications

Ordering Options and Part Numbers

Frequently Asked Questions

Can the FX200 read QR codes from a phone screen?
Yes. It is a 2D imager that reads QR and other 2D codes from screens and paper.

USB or RS-232?
Use USB for PCs and most modern controllers. Choose RS-232 for industrial or legacy kiosk controllers with serial ports.

Why Source the 2D Scan FX200 from Allstar Terminals

• Wholesale tiered pricing for ISOs, ISVs, resellers, processors and PayFacs, from a single unit to a full rollout.
• Blind drop-shipping straight to your merchants or field sites, under your name.
• One supplier, every major brand: ID TECH alongside PAX, Ingenico, Verifone, Dejavoo, SUNMI, Valor and more.
• Support from people who know payment hardware, based in Plano, Texas.

Availability: Single units and small orders ship fast. Bulk and custom-configured orders are built to order, so contact us for current lead times. Request volume pricing or call 888-403-7066.

Shipping Information

Most orders ship same day if placed before 2 PM CST.

• Standard Shipping: 3–5 business days

• Expedited Shipping: 1–2 business days (extra fee)

• Free Shipping: Automatically applied on orders over $999

• International Shipping: Available. Delivery times and rates vary by destination.


Blind Shipping Available
If you’re a reseller, we can ship without branding or company info.
Just request blind shipping at checkout or contact support.

Returns & Refunds

Items eligible for return must be unopened, unused, and in original condition.
Contact support@allstarterminals.com within 14 days to start a return.

• Bulk Orders (10+ units): Final sale, non-returnable

• Accessories: Non-refundable (cables, stands, scanners, power supplies, etc.)

• Programmed/Encrypted Devices: Cannot be returned due to compliance regulations


Restocking Fee:
Opened or used terminals may incur a 25% restocking fee.

Refunds:
Approved refunds are issued to the original payment method within 7–8 business days.

Customer is responsible for return shipping.

Damaged or Defective Items

If your item arrives damaged or not functioning, contact us within 3 days.
We’ll inspect and send a replacement if needed.
