PAX A6630 Handheld Android POS Terminal | Dual Display, Scanner, 4G | A6630-0AW-RG6-02AA

The PAX A6630 (part number A6630-0AW-RG6-02AA) is a handheld Android smart POS terminal built for payments on the move. It puts a 6.5" HD touchscreen, a rear customer-facing display, chip, swipe and tap acceptance, a built-in barcode scanner and 4G LTE with eSIM into a phone-sized 305 g device with a full-shift 6000 mAh battery.

Why businesses choose the PAX A6630

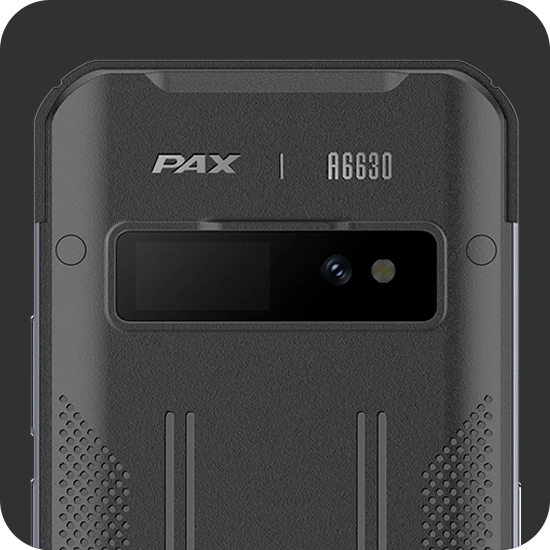

• Dual displays: 6.5" IPS HD main screen (1600 x 720) plus a secondary rear display that shows customers the amount, loyalty prompts or your branding.
• Every way to pay: EMV chip, magstripe and contactless NFC (Visa payWave, Mastercard PayPass, AMEX ExpressPay, Discover D-PAS) and mobile wallets, with PIN entry on screen.
• Built-in scanner: optical 1D/2D barcode and QR scanner with red light emitter, plus 5 MP rear and 2 MP front cameras, for loyalty, inventory, order tracking and check-ins.
• Connected anywhere: 4G LTE with dual SIM and eSIM (AirLink), dual-band Wi-Fi and Bluetooth 5.0.
• Android 12 with PAXSTORE: quad-core CPU, 4 GB RAM and 64 GB storage, with PAXSTORE preloaded for app installs, device registration and remote management.

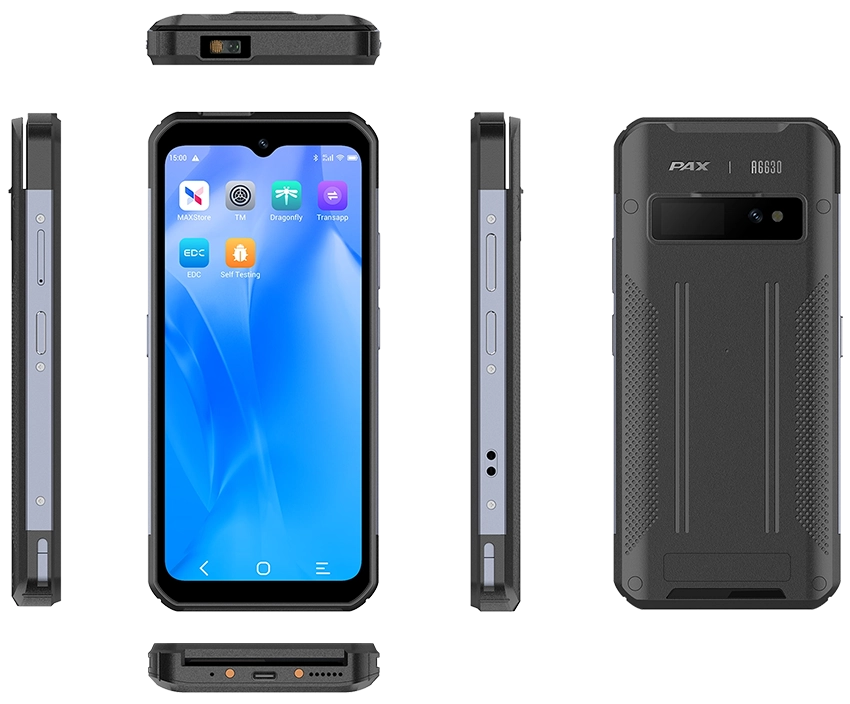

• Made to be carried: 173.8 x 80.2 x 17.4 mm, textured anti-slip grip, optional hand strap, 1.5 m drop tested, operating from -10 to 50 C.
• Secure: PCI PTS 6.x SRED (approval expires 30 Apr 2032), EMV L1 and L2, SAM module support.

Who the A6630 is for

Restaurants and bars: tableside ordering and pay-at-table. Retail: line busting, mobile checkout and inventory lookups. Hospitality and events: check-ins, ticket scanning and loyalty. Delivery, field service and logistics: scan-and-pay on the road with 4G and eSIM.

PAX A6630 vs other PAX handhelds

Need a built-in receipt printer? Choose the PAX A920 Pro or PAX A920MAX. Want a dual-screen countertop-to-mobile option? See the PAX A920Pro DUO. For heavy-duty scanning in warehouses and field work, the PAX A6650 is the rugged PDA.

Programmed and ready to deploy

We inject your processor's keys and program every A6630 in-house, so units arrive ready to take payments. Blank units ordered by 10 AM CST ship the same day; injected or programmed orders ship 2 to 3 business days after the order is placed. Wholesale tiered pricing and blind drop-shipping are available for ISOs, ISVs, resellers and merchant services companies. Request a wholesale quote or call 888-403-7066.

PAX A6630 frequently asked questions

What is the PAX A6630?

A handheld Android smart POS terminal from PAX. It combines a 6.5" touchscreen, a rear customer display, chip, swipe and tap payments, a barcode scanner and 4G, Wi-Fi and Bluetooth in a 305 g phone-sized device.

Does the PAX A6630 have a receipt printer?

No. The A6630 has no built-in printer; receipts are digital (text or email) or sent to a separate Bluetooth or network printer. If you need a built-in printer, look at the PAX A920 Pro or A920MAX.

What payments does the A6630 accept?

EMV chip, magnetic stripe and contactless NFC, including Visa payWave, Mastercard PayPass, AMEX ExpressPay, Discover D-PAS and mobile wallets. PIN is entered on the touchscreen.

What is the difference between the PAX A6630 and the A6650?

Both are PAX handheld Android devices with a built-in scanner. The A6630 is the slimmer, lighter mobile POS with a rear customer display. The A6650 is the larger all-in-one PDA built for heavier warehouse and field work.

Does the A6630 have 4G and eSIM?

Yes. It supports 4G LTE with dual SIM plus eSIM (AirLink), along with dual-band Wi-Fi and Bluetooth 5.0.

What is the PAX A6630 PCI approval status?

It is listed under PCI PTS 6.x with SRED, approval 4-90357. The approval expires 30 Apr 2032.

Can you program the A6630 for my processor?

Yes. We inject keys and program terminals in-house for the processors and gateways our customers use. Injected or programmed orders ship 2 to 3 business days after the order is placed.
