Verifone UX100 Unattended PIN Pad | 2.4" Display, IP65 Outdoor Keypad

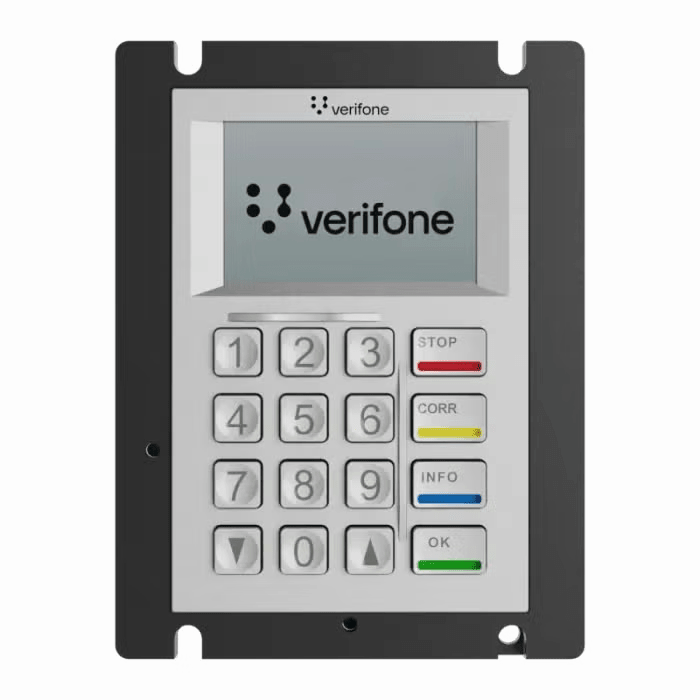

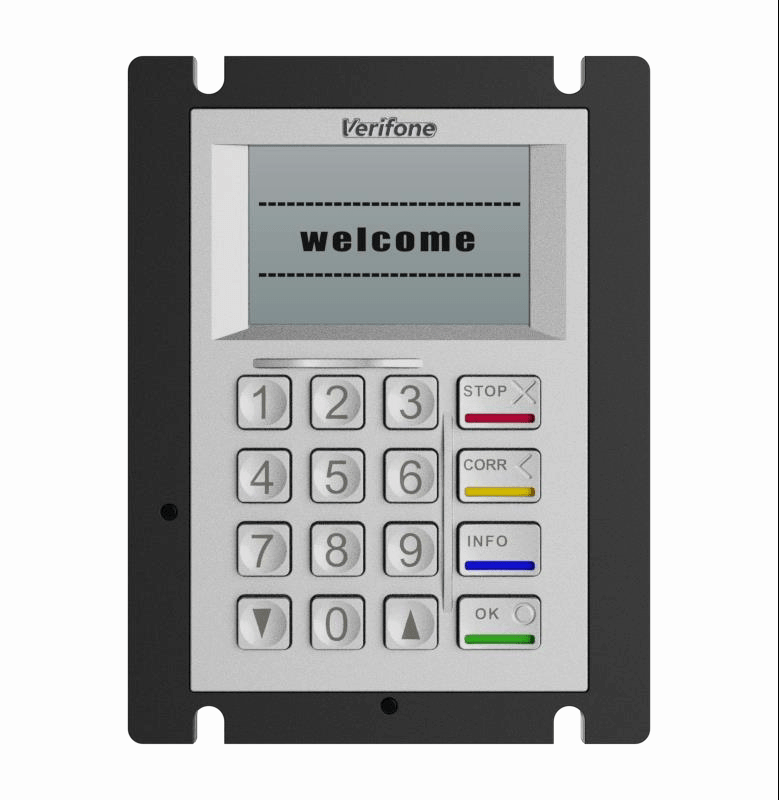

The Verifone UX100 is the PIN pad and customer display of Verifone's UX unattended payment family. It mounts flush in the panel of a kiosk, fuel pump, parking pay station, EV charger or vending machine and gives customers a weatherproof keypad for PIN entry and on-screen prompts.

How the UX100 fits a Verifone UX setup

The UX series is modular. The UX100 does not read cards on its own. It plugs into the Verifone UX300 card reader, which reads chip and magstripe cards and runs the payment application, with a single USB cable that carries both power and data. Add the UX400 contactless reader to accept tap-to-pay cards and mobile wallets. A complete card-present unattended setup is UX300 + UX100 + UX400, each mounted in the machine's panel.

Key features

• Readable outdoors: 2.4" monochrome LCD (128 x 64) with LED backlight, high contrast in direct sunlight and low temperatures.
• Built to be pressed: tactile 16-key keypad with embossed, color-marked STOP, CORR, INFO and OK keys, rated for 2,000,000 presses per key.
• Weather and vandal resistant: metal front plate, IP65 dust and water protection and IK09 impact rating (up to 10 joules).
• Wide temperature range: operates from -20 to 70 C (-4 to 158 F).
• Simple install: one USB Type-B connection to the UX300; mounts with four screws into an 83 x 121 mm panel cutout with only 5 mm front projection.
• Secure PIN entry: PCI PTS 5.x approved (approval 4-20352, approval expires 30 Apr 2027), tamper resistant, with an optional anti-removal switch kit.

Where the UX100 is used

Fuel pumps and petroleum forecourts, off-street parking meters and pay stations, ticketing and transit machines, EV charging stations, self-service kiosks and vending machines.

Frequently asked questions

Can the Verifone UX100 take card payments on its own?

No. The UX100 is the PIN pad and display. Cards are read by the UX300 (chip and magstripe) and, for tap payments, the UX400 paired with the UX300.

What does the UX100 connect to?

It connects to the Verifone UX300 card reader with a single USB cable (USB Type-B on the UX100). The UX300 supplies its power.

Is the UX100 rated for outdoor use?

Yes. It has a metal front plate, IP65 dust and liquid protection, an IK09 impact rating and an operating range of -20 to 70 C.

What is the difference between the UX100 and UX110?

The UX100 has a 2.4-inch display. The UX110 is keypad only, with no screen.

What panel cutout does the UX100 need?

83 mm x 121 mm. The unit is 108 mm wide, 142 mm high and 33 mm deep, with 5 mm front projection.

What is the UX100's PCI approval status?

It is listed under PCI PTS 5.x, approval 4-20352. The approval expires 30 Apr 2027.

Configured before it ships

We inject and program every unit in-house, so your devices arrive loaded with your processor's keys and ready to install. Injected or programmed orders ship 2 to 3 business days after the order is placed. Blank (unprogrammed) units ordered by 10 AM CST ship the same day. Wholesale tiered pricing and blind drop-shipping are available for ISOs, resellers, kiosk builders and operators.

Request a wholesale quote or call 888-403-7066.
