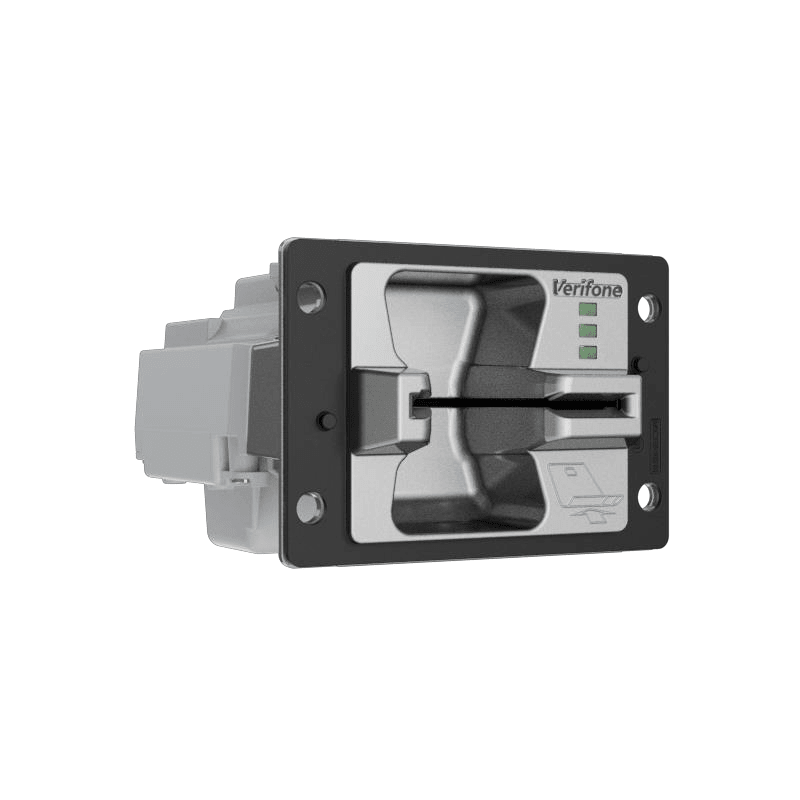

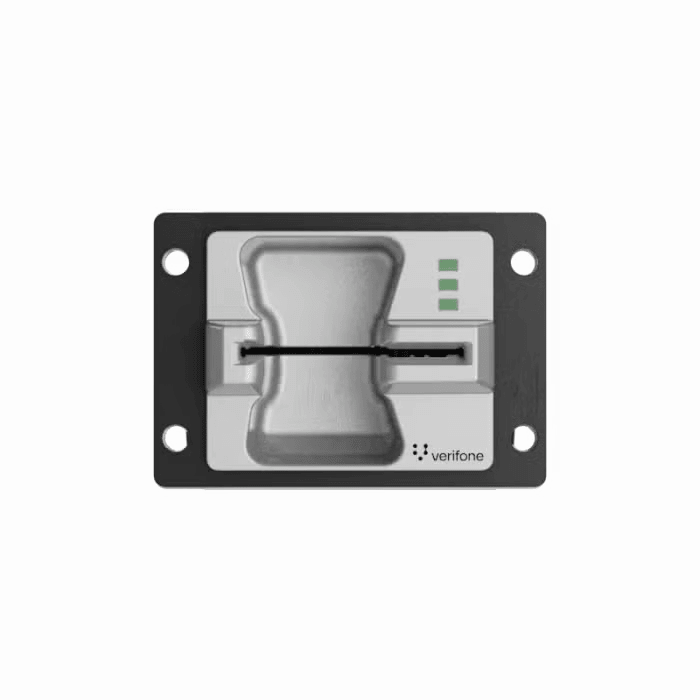

Verifone UX300 Unattended Card Reader | EMV Chip & Magstripe | M159-300-000-WWA-B

The Verifone UX300 is the card reader and main control unit of Verifone's UX unattended payment family. It reads EMV chip and magstripe cards, runs the payment application on Verifone's secure OS, and connects to the host machine: the kiosk PC, vending controller, fuel or parking system. This listing is the UX300 Standard, part number M159-300-000-WWA-B.

How the UX300 fits a Verifone UX setup

The UX300 is the "master" unit. Add the Verifone UX100 PIN pad for PIN entry and on-screen prompts; it plugs into the UX300 by USB. Add the UX400 contactless reader for tap-to-pay and mobile wallets; it has no software of its own and is driven by the UX300 over its antenna cables. The UX300 also works without a PIN pad for chip, magstripe or contactless transactions that do not need PIN entry. (The UX301 pairs with the UX401.)

Key features

• Hybrid card reader: landed (non-sliding) EMV smart card contacts and triple-track magstripe (ISO 7810, 7811, 7813), with a shutter that blocks foreign objects, plus 2 SAM slots.
• Runs the transaction: ARM11 400 MHz processor, 128 MB RAM and 256 MB flash, Verifone Secure OS (VOS).
• Connects to your machine: Standard model ports include LAN 10/100, powered RS232, powered USB Type-A for the UX PIN pad, USB Type-B, and the contactless antenna connectors for the UX400.
• Anti-vandal design: IK09 impact rating, IP34 front panel, two anti-removal switches that disable PIN processing if the unit is pulled.
• Outdoor temperature range: operates from -20 to 70 C (-4 to 158 F); low-power sleep mode for always-on machines.
• Approved security: PCI PTS 5.x secure card reader (approval 4-20353, approval expires 30 Apr 2027); EMVCo approved smart card reader.

Where the UX300 is used

Vending machines, public transportation and ticketing, fuel pumps, parking pay stations, EV chargers and self-service kiosks.

Power

The UX300 Standard runs on 9 to 12 V DC through a 4-pin socket (idle about 2 W). Verifone's 12 V power supply is a separate accessory; ask us to quote it with your order.

Frequently asked questions

Does the UX300 accept contactless payments?

Not by itself. Contactless is added by pairing the UX400 reader, which the UX300 drives. The UX301 pairs with the UX401.

Do I need the UX100 PIN pad?

Only if you need PIN entry or an on-screen prompt. The UX300 works with or without the UX100.

What does Standard mean in M159-300-000-WWA-B?

It is the base UX300: chip and magstripe reader and controller with 12 V input, LAN, RS232, USB and NFC antenna ports. MDB, petrol, cellular and dual-LAN versions are separate models.

How is the UX300 Standard powered?

9 to 12 V DC through a 4-pin socket. Verifone's 12 V power supply is sold separately.

Is the UX300 rated for outdoor use?

It is built for unattended machines: IK09 impact rating, IP34 front panel and an operating range of -20 to 70 C.

What is the UX300's PCI approval status?

It is listed under PCI PTS 5.x as a secure card reader, approval 4-20353. The approval expires 30 Apr 2027.

Configured before it ships

We inject and program every unit in-house, so your devices arrive loaded with your processor's keys and ready to install. Injected or programmed orders ship 2 to 3 business days after the order is placed. Blank (unprogrammed) units ordered by 10 AM CST ship the same day. Wholesale tiered pricing and blind drop-shipping are available for ISOs, resellers, kiosk builders and operators.

Request a wholesale quote or call 888-403-7066.
